This tutorial shows how to remove the Bottom Gearbox from the XE-1
1. Work Instruction - Remove Bottom Gearbox
TOOLS REQUIRED
| ID | Description | Task |
| 5 mm Hex Drive / Allen Key | Loosen M6 Cap Screws | |
| 10 mm Open / Combination Wrench | Loosen M6 Nylock Nut |

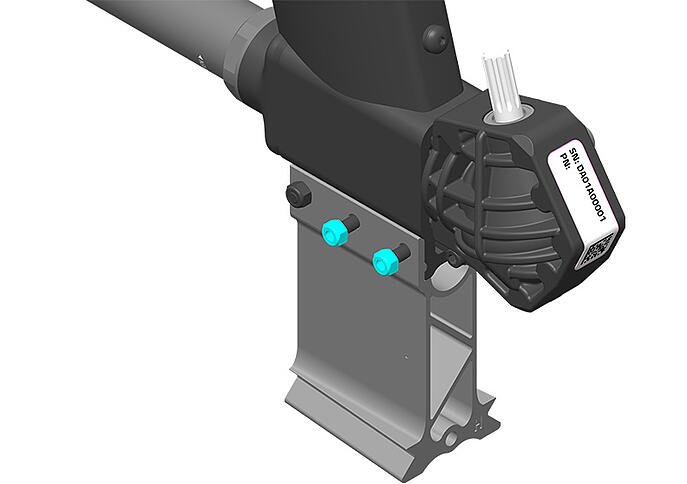

1.1 Loosen and remove the two aft M6 nylock nuts. [Tools: 10 mm Wrench, 5 mm Hex Key]

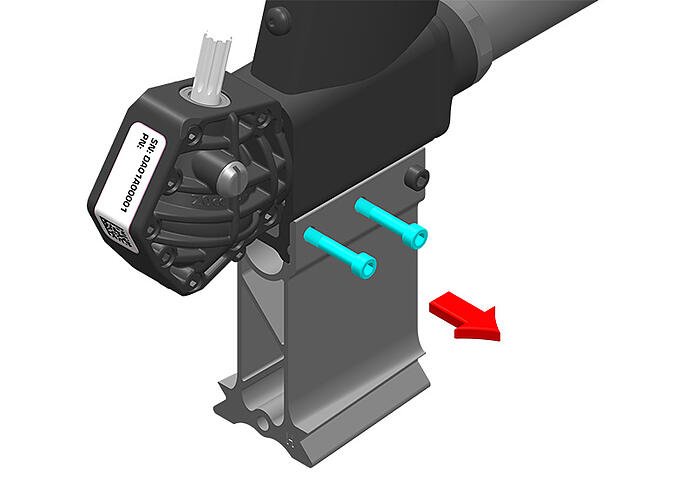

1.2 Remove the two aft 45 mm length cap screws that lock in the Bottom Gearbox. [Tools: By Hand]
1.3 Remove the Bottom Gearbox from the Frame and disengage the Bottom Gearbox Input Shaft from the Propeller Drive Shaft.
|
|
INFORMATION: Inspect the Gearbox. If excessive wear and/or damage is detected, it is strongly recommended that the Propeller Drive Shaft Assembly is also removed and inspected. |
